GREENLOXX VEGETATED WALL, SLOPE & SHORE SYSTEMS

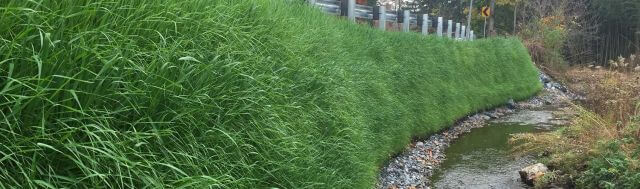

Filtrexx GreenLoxx Vegetated Wall and Slope Systems

GreenLoxx® vegetated systems allow for the restoration of eroded or damaged slopes, riparian waterways, shoreline banks, and more. Create attractive, naturally vegetated landscapes without the use of hard concrete materials on your restoration projects.

System NameMSESlope DegreeAnchorsGeogridGroSoxx SizePurpose
GreenLoxx Vegetated Slope Facing (VSF)NoUp to 60°YesYes8"x3'Protect slope surface from erosion
GreenLoxx MSE Vegetated Retaining WallYes70-90°NoYes12"x2'Gain back land
GreenLoxx Reinforced Soil Slope (RSS)Yes50-70°NoYes12"x2'Gain back land

GreenLoxx systems are an excellent alternative to retaining walls built with conventional block or concrete systems as they offer reinforcement capabilities in addition to sustainable and aesthetic features. Also known as living walls, Greenloxx systems are reinforced with geotextile support to form a retaining living wall that “locks”. The locking system is created by the integration of Filtrexx geogrids (FLW) and a fascia made from GroSoxx® filled with GrowingMedia™. With the use of GroSoxx, the GreenLoxx systems provide superior soil retention and erosion protection to the desired area and an optimal environment for vegetation establishment.

GroSoxx consists of Filtrexx® Durable mesh, filled with composted Filtrexx GrowingMedia. GroSoxx are stacked on top of one another in a recessed fashion on steep slopes to near vertical situations. Filtrexx FLW geogrid is seamlessly incorporated into the system giving it added structural support and integrity to meet specific environmental and site requirements. The addition of vegetation growing through the facing with healthy roots penetrating the entire structure adds environmental service, natural aesthetics and structure.

Filtrexx has created a full line of vegetated retaining walls and slopes that utilize our proprietary GrowingMedia to provide a fertile growing medium that encourages vegetation establishment and successfully assists in anchoring roots of the vegetation to the wall, geogrids and the site substrate. Contact Filtrexx and let us collaborate on your next wall or slope project development.

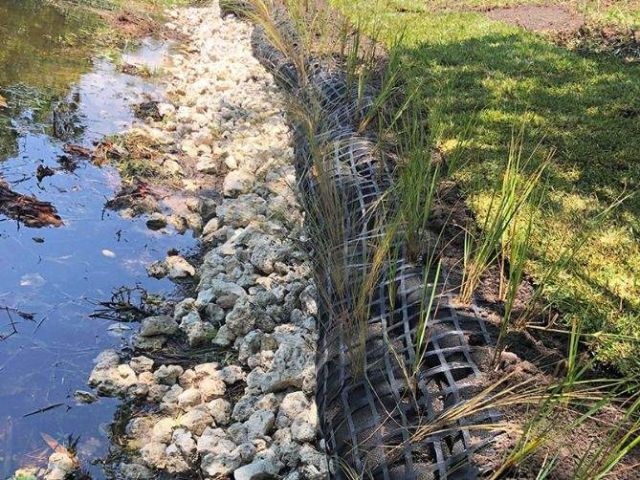

Project Profile: GreenLoxx Saves Yards While Also Saving…Turtles?

Read about how GreenLoxx not only saved this Florida homeowners’ yard from eroding into a canal but also the wildlife that lived in their yard.

Download Project Profile

Filtrexx Project Profile GreenLoxx

GREENLOXX VEGETATED SLOPE FACING (VSF)

ABOUT

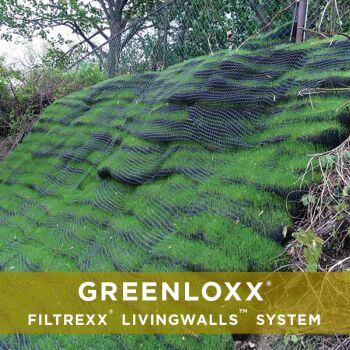

GreenLoxx VSF is typically used to protect the face of the slope or bank from erosion. Requires minimal base preparation/ excavation, and no backfill. FLW Geogrid is wrapped over the GroSoxx and secured with soil anchors.

FEATURES

  • Lightweight components
  • Immediate protection from toe cutting & sloughing
  • Establish and reinforce vegetation under intense hydraulic pressure
  • Drains freely, less hydrostatic pressure

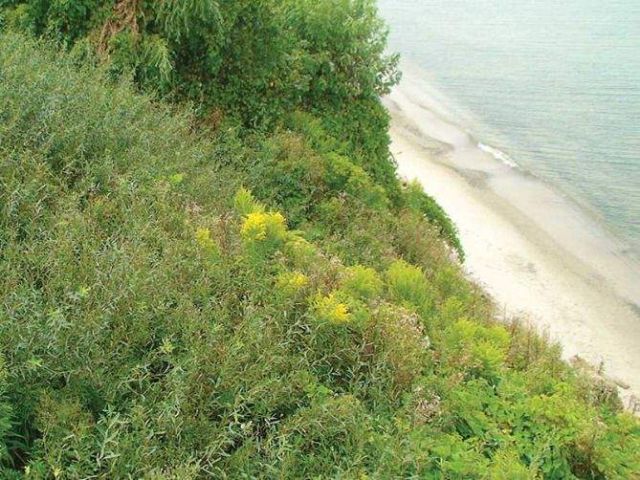

GreenLoxx VSF Project Lake Erie

GREENLOXX MECHANICALLY STABILIZED EARTH (MSE)

ABOUT

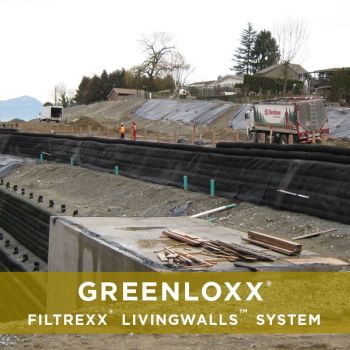

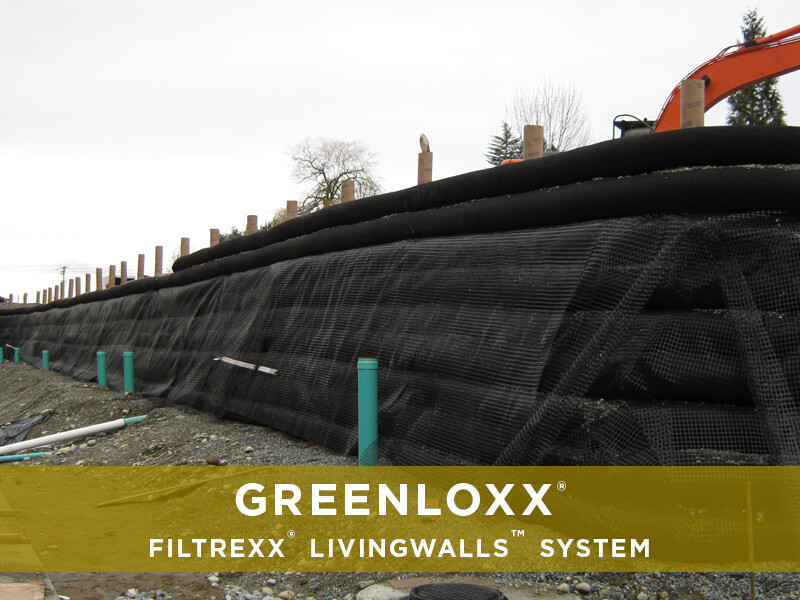

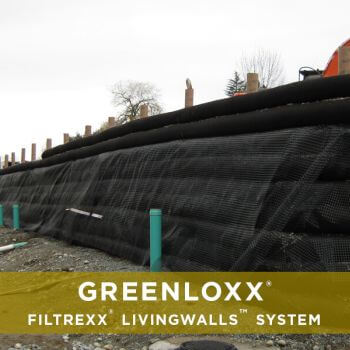

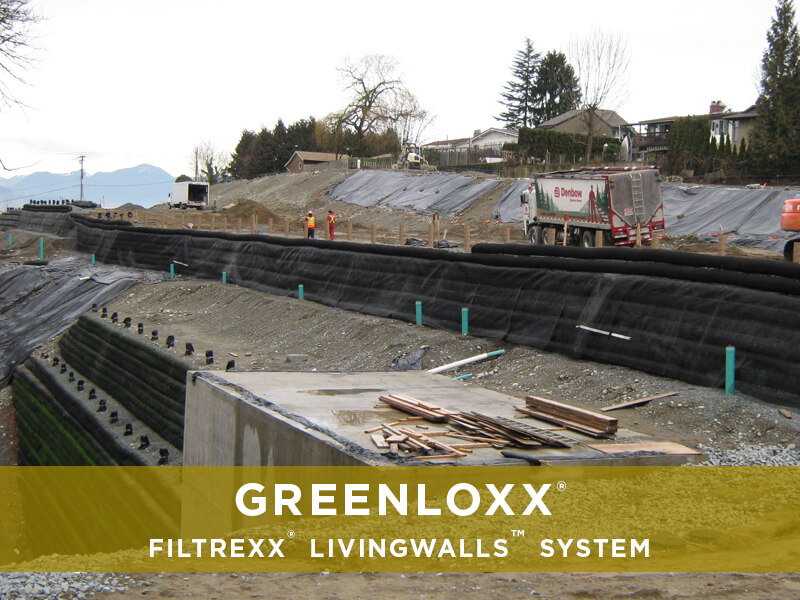

GreenLoxx MSE is typically used to build a more vertical, structural wall. GroSoxx are stacked in courses wrapped in FLW Geogrid and tied back into the compacted fill behind the face of the wall.
Note: For slopes from 50° - 70°, the GreenLoxx MSE Vegetated Retaining Wall - Reinforced Soil Slope (RSS) alternate design is used.

FEATURES

  • Lightweight components
  • Withstands high flow velocities - ideal for sensitive riparian areas
  • Safer & more flexible installation than block walls

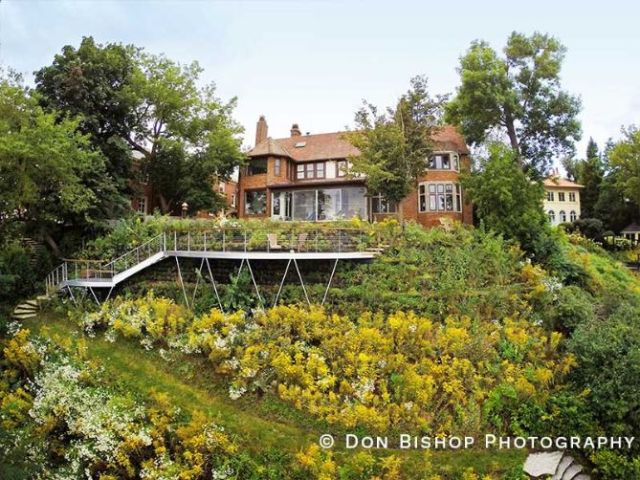

GreenLoxx MSE Project Lake Michigan

WEBINARS AND SEMINARS

View our calendar of webinars and seminars and sign up to learn more about Filtrexx® Sustainable Technologies.

VIEW WEBINARS

VIEW SEMINARS

DESIGN SPECIFICATIONS & CADs

We provide FREE access to our Filtrexx Design Manual. Our database includes product specifications, installation guidelines and recommendations, as well as CADs for over 25 applications. Engineers, designers and installers rely on our Filtrexx Design Manual to evaluate our products and find best suitable solutions. Sign up or log in for free.

CLICK HERE

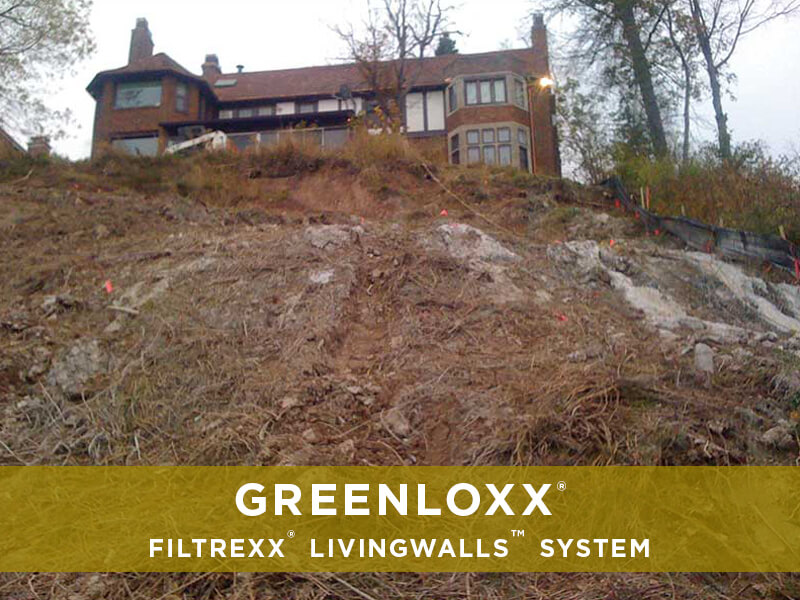

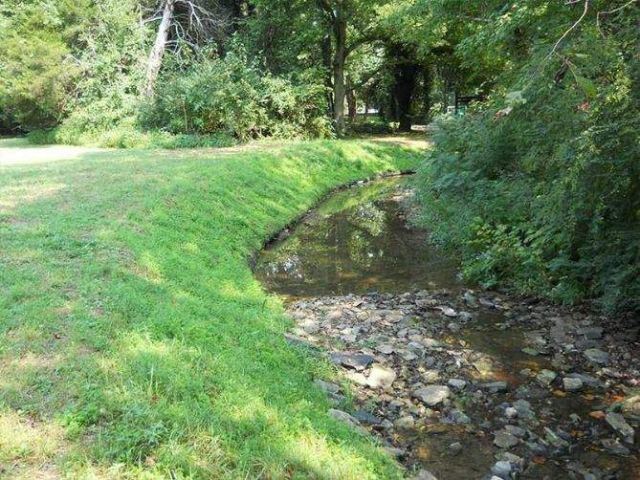

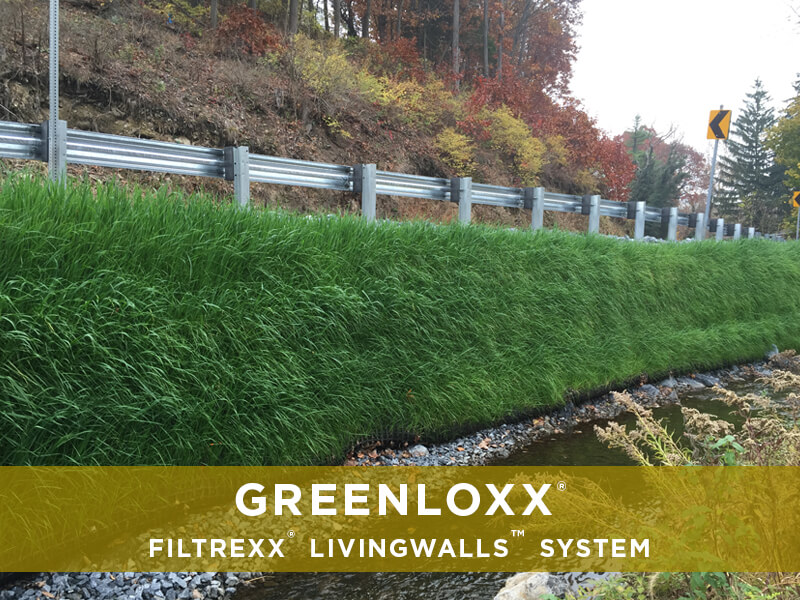

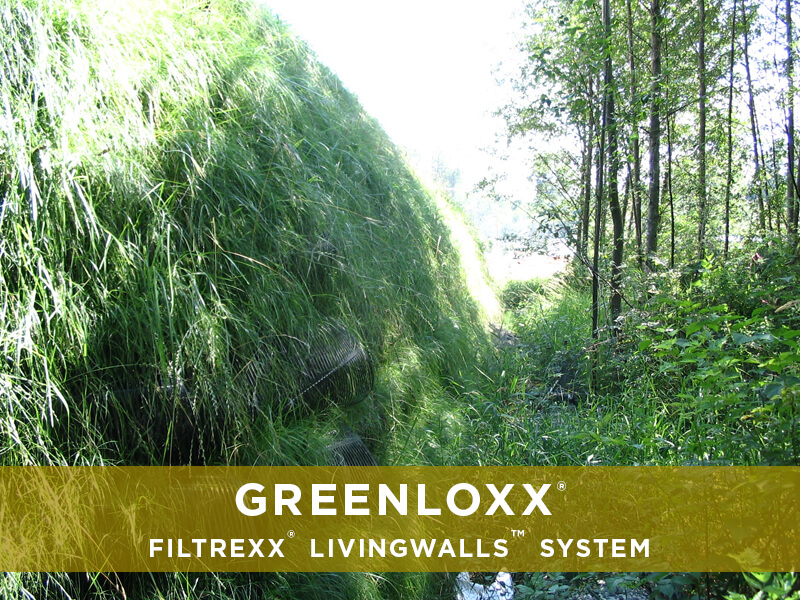

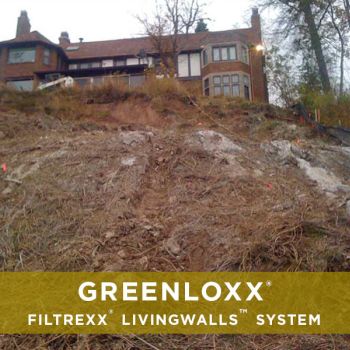

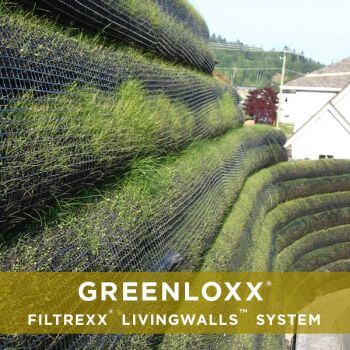

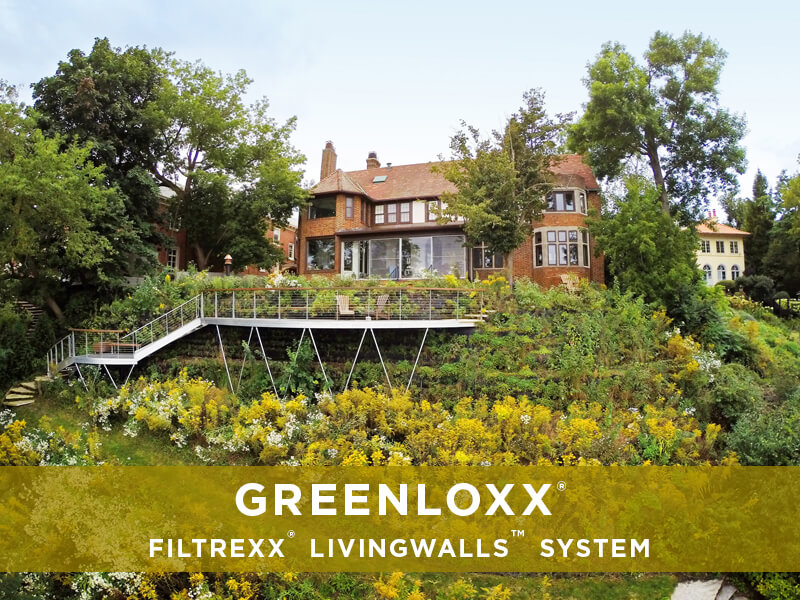

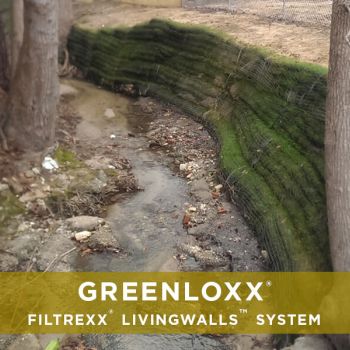

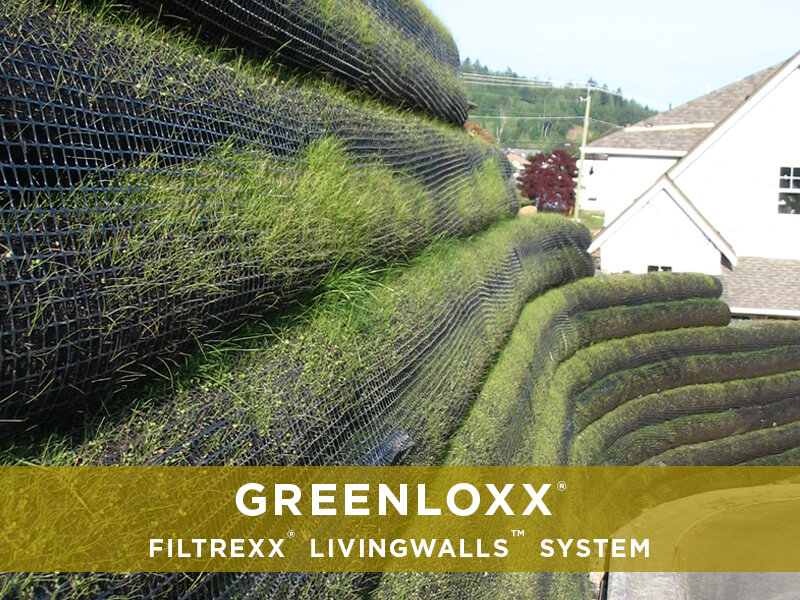

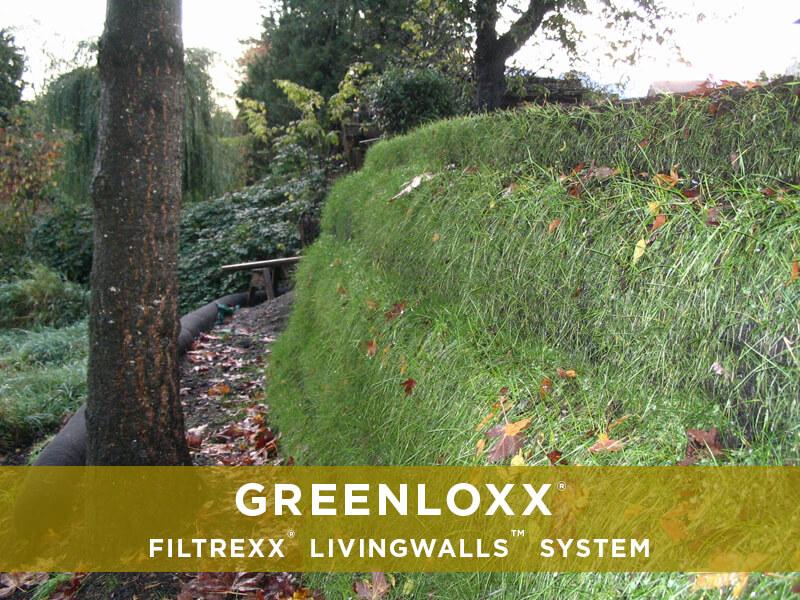

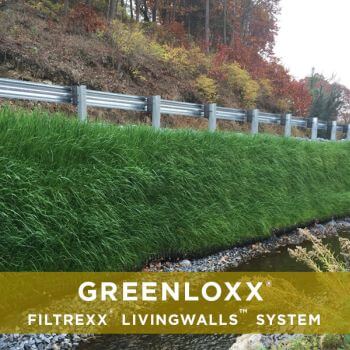

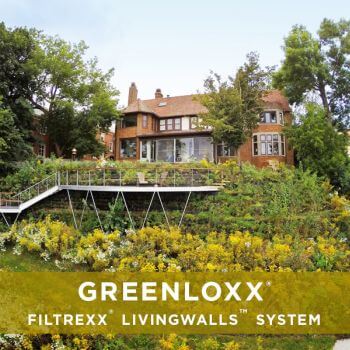

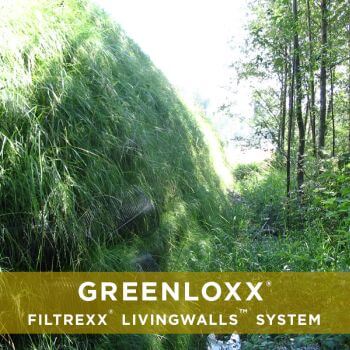

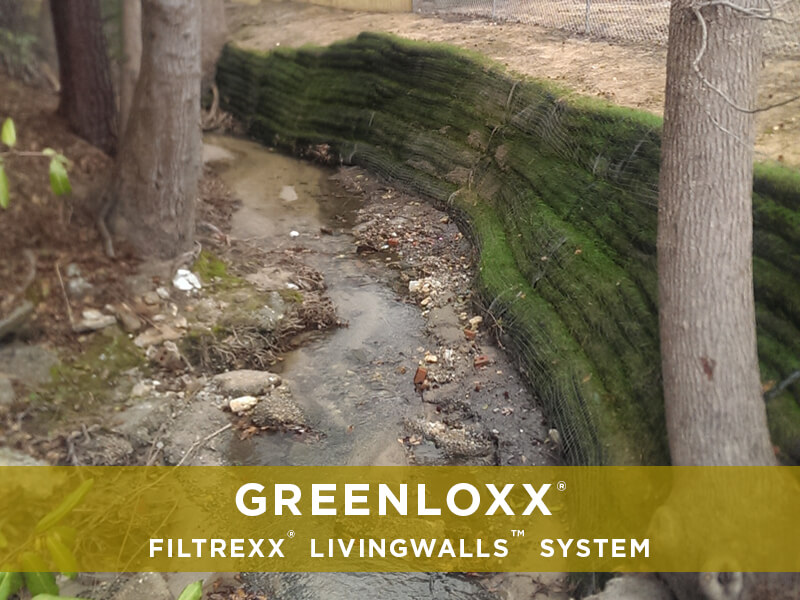

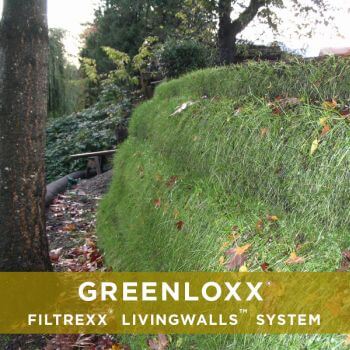

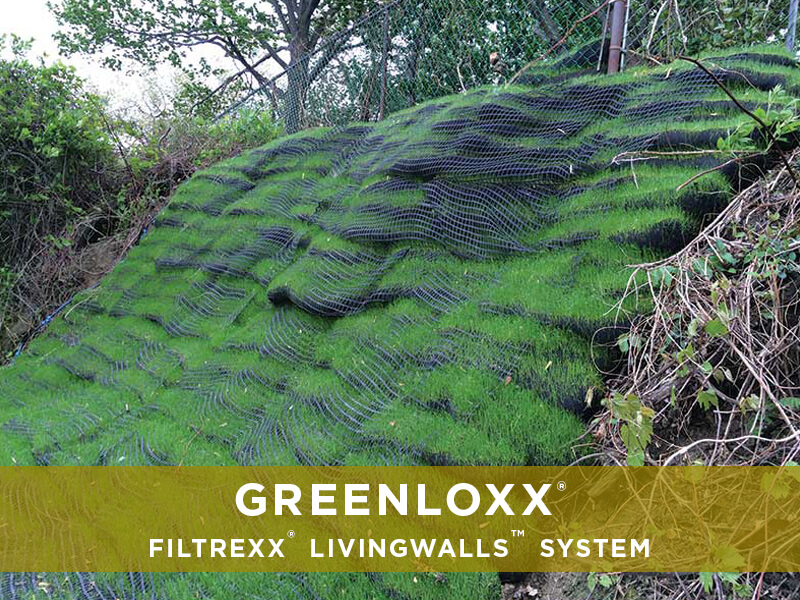

GREENLOXX VEGETATED WALL & SLOPE SYSTEMS GALLERY
